USB architecture explained from host controller to device endpoints
How USB architecture works at a glance
USB architecture starts with a simple rule: the host controls communication, and devices describe what they can do. When a smart device is connected, it becomes part of a layered system that includes the host controller, root hub, optional external hubs, physical signaling, protocol rules, descriptors, interfaces, endpoints and, in many current designs, USB Type-C power negotiation.
For device designers, the key point is that USB is not a single feature. It is a stack. USB 2.0, USB 3.2, USB4, USB Type-C and USB Power Delivery address different parts of that stack. Treating them as interchangeable can lead to vague product specifications, unstable firmware assumptions and compatibility problems in the field.
This guide explains the architecture from the host controller down to device endpoints, using current context from USB-IF specifications, Microsoft driver documentation, Linux kernel documentation and Apple USB developer materials.
Why USB is a host-centric architecture
The Universal Serial Bus model is different from peer-to-peer interfaces because the host schedules and manages nearly all traffic. In a computer, tablet, embedded gateway or industrial controller, the host controller sits behind the operating system USB stack. It communicates through a root hub, optional external hubs and one or more devices.
Devices normally do not initiate arbitrary communication by themselves. They expose descriptors and endpoints, then respond to transactions scheduled by the host. That design choice affects almost every part of device engineering, from boot timing to endpoint layout and driver selection.
This host-centric structure matters for smart hardware. A sensor, camera, storage accessory, human interface device or firmware update port must be designed around what the host will request during enumeration and which transfer type fits the workload. A keyboard does not need the same transfer behavior as a data logger. A USB audio interface has different latency expectations from a mass-storage device. USB gives these products a common discovery model while still allowing different classes, interfaces and data paths.
Classic USB addressing also reflects this model. The host assigns addresses after connection. Address zero is used temporarily during early enumeration, and configured devices receive their own address from the host. Hubs are part of the same architecture because they are both USB devices and traffic managers. As a result, hub depth, power budget and cable quality can affect behavior even when the device firmware is correct.
The main layers of USB architecture

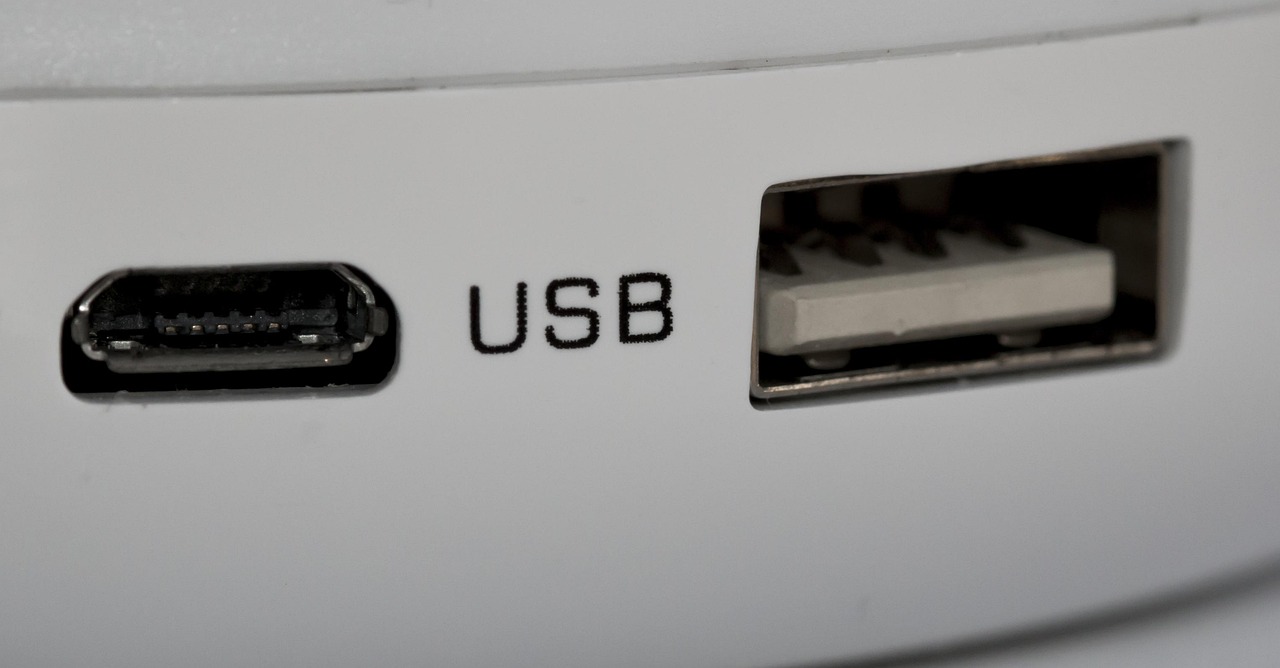

A practical way to understand USB is to separate the architecture into layers. Product marketing often compresses these layers into short phrases such as USB-C port or USB 40Gbps. Engineering teams need more precise language. USB Type-C is a connector and cable ecosystem. USB 2.0, USB 3.2 and USB4 define data architecture and signaling behavior. USB Power Delivery defines negotiated power and role behavior over the configuration channel in Type-C systems.
| Layer | What it defines | Design implication |
|---|---|---|
| Physical connector and cable | Plug shape, cable orientation, pin use, cable capability and mechanical behavior | A Type-C connector does not automatically guarantee USB4 speed, DisplayPort alternate mode or high-power charging |
| Electrical and signaling layer | Data lanes, signaling rates and link behavior for USB 2.0, USB 3.2 or USB4 | PCB layout, retimers, ESD protection, cable length and signal integrity become central at higher speeds |
| Protocol layer | Packet flow, transactions, link management and transfer scheduling | Firmware and drivers must respect transfer type, direction and timing assumptions |
| Device framework | Descriptors, configurations, interfaces, alternate settings and endpoints | The host discovers capabilities through defined data structures, not through informal device assumptions |
| Class and application layer | Standard device classes or vendor-specific behavior | Standard classes can reduce custom driver work, while vendor-specific interfaces offer flexibility at the cost of integration effort |
| Power and role negotiation | Source, sink, dual-role power behavior and negotiated voltage or current | Charging, docking and accessory modes must be planned separately from data speed claims |
USB-IF material describes USB4 as building on the existing USB 3.2 and USB 2.0 architectures. That is an important architectural point. Newer USB generations do not erase the earlier model. They add lanes, tunneling, bandwidth management and Type-C-focused assumptions while preserving enumeration, descriptors and host coordination.
Enumeration, descriptors, interfaces and endpoints
Enumeration turns a physical connection into a usable device. After attachment, the host detects the connection, resets the device, requests basic descriptor information, assigns an address, reads additional descriptors, selects a configuration and creates operating system objects for the interfaces and endpoints it will use. Because this sequence is host-driven, USB devices should not depend on undocumented timing shortcuts during startup.
The descriptor model is central to USB architecture. A device descriptor identifies the device at a high level. A configuration descriptor describes a possible operating configuration. Interface descriptors divide the device into functional units. Endpoint descriptors describe communication endpoints, including direction and transfer type. Composite devices use this model to expose multiple functions, such as a camera interface plus a microphone interface, through one physical connection.
Endpoint zero is special. Every USB device must support the default control endpoint used for standard requests during enumeration and configuration. Additional endpoints are optional and depend on the device function. Microsoft documentation explains the distinction clearly: an endpoint is a device-side resource, while a pipe is the host-side software abstraction that communicates with that endpoint. Apple and Linux documentation use the same broad concept when describing host pipes and endpoint descriptors.
Transfer types and device behavior
USB uses several transfer types, and the choice affects both performance and implementation complexity. Control transfers are used for setup and command-style exchanges, especially through endpoint zero. Bulk transfers are common for large data movement where throughput matters more than bounded latency. Interrupt transfers are useful for small, periodic or event-like data, such as input devices. Isochronous transfers serve time-sensitive streams such as audio or video, accepting limited error recovery in exchange for predictable delivery timing.
These choices affect buffer size, firmware scheduling, driver design and user experience. A smart meter that reports periodic readings may not need the same endpoint plan as a USB camera. A firmware update interface may work well with a simple bulk endpoint design, while a low-latency control panel may use interrupt endpoints for responsive status changes.
USB-C, USB4 and power delivery are related but not identical
A common source of confusion is the relationship between USB-C, USB4 and USB Power Delivery. They often appear together in modern hardware, but they are not the same architectural layer. USB Type-C defines the reversible connector and related cable behavior. USB4 defines a high-speed data architecture that uses USB Type-C connectors and can support operation up to 80 Gbps over appropriate certified cables, according to USB-IF materials. USB Power Delivery defines negotiated power behavior and has continued to evolve through published revisions, including USB Power Delivery Specification Revision 3.2 Version 1.2 listed by USB-IF on May 20, 2026.
The design implication is straightforward: a product specification must state capability, not just connector shape. Saying a device has USB-C is incomplete. A useful specification should distinguish data speed, charging role, power limits, alternate-mode support, cable requirements and whether the product behaves as a host, device or dual-role port. Without that detail, users may expect one port to charge a laptop, drive a display and transfer data at USB4 speeds even if the device only implements USB 2.0 over Type-C.
USB Power Delivery also changes device architecture because it introduces policy decisions. A dual-role smart device may operate as a power sink in one scenario and a power source in another. It may need to negotiate before enabling high-power loads. It may also need safe fallback behavior when connected to a legacy charger, a passive cable, a hub or a host that supports only limited current. These decisions belong in the system architecture, not as late-stage firmware patches.
What changes across USB 2.0, USB 3.2 and USB4
The architectural model remains recognizable across generations, but higher speeds and newer connector ecosystems add complexity. USB 2.0 is still widely relevant for low-cost embedded devices, debug ports, keyboards, microcontrollers and many smart accessories. USB 3.2 adds SuperSpeed lanes and higher data rates, making signal integrity and connector routing more important. USB4 goes further with a Type-C-centered architecture that supports high-speed tunneling and bandwidth allocation for multiple protocols.
| Technology | Typical role in architecture | What designers should watch |
|---|---|---|
| USB 2.0 | Broad compatibility, control transfers, low and high-speed device support | Endpoint planning, enumeration reliability, power budget and class-driver support |
| USB 3.2 | Higher-speed data paths while still coexisting with USB 2.0 behavior | Lane routing, connector quality, shielding, firmware throughput and host compatibility |
| USB4 | High-bandwidth Type-C architecture with support for up to 80 Gbps in the current USB-IF description | Cable certification, controller support, thermal behavior, tunneling requirements and realistic user labeling |
| USB Type-C | Connector, cable orientation and configuration channel ecosystem | Do not treat the connector as a speed claim; define actual data, power and mode support |
| USB Power Delivery | Negotiated power and role behavior | Plan power policy, safety limits, fallback behavior and cable capability checks |
The practical lesson is that older USB knowledge still matters. Even in a USB4 environment, a device may expose interfaces and endpoints that the host must enumerate. Even with a Type-C receptacle, the system may still carry only USB 2.0 data. USB is layered, and each layer must be specified accurately.
Design implications for smart hardware devices
For smart hardware teams, USB architecture should be considered early in product planning. The first question is not which connector looks modern. It is what the device must do when attached to different hosts. A field sensor may need reliable power and simple data extraction. A development board may need serial debugging, firmware flashing and mass-storage mode. A wearable dock may need charging, low-speed control and occasional high-speed synchronization. Each use case leads to a different descriptor, endpoint and power strategy.
Several design choices deserve early attention. First, decide whether the device can use standard USB classes such as HID, CDC, mass storage or audio. Standard classes may reduce driver friction, but they may limit special behavior. Second, design endpoint direction and transfer type around the real data pattern. Third, test enumeration across operating systems, hubs, cables and low-power states. Fourth, document cable and port requirements in user-facing language. A technically correct device can still fail commercially if users misunderstand what its USB-C port can do.
Security is also part of architecture. USB devices are trusted deeply by operating systems during enumeration, and a device can present different classes or interfaces from what a user expects. For managed environments, designers should consider signed firmware update paths, clear device identity, conservative default modes and administrative controls. This is especially important for devices that expose debug, storage or network-style interfaces.
Frequently asked questions
Is USB architecture the same as USB-C architecture?
No. USB architecture is the broader communication model that includes hosts, devices, hubs, descriptors, endpoints, transfer types and drivers. USB-C is the connector and cable ecosystem often used by modern USB implementations. A USB-C port may support USB 2.0, USB 3.2, USB4, Power Delivery, alternate modes or only a subset of those features.
What is the difference between an endpoint and a pipe?
An endpoint is a device-side communication resource described by the device firmware and descriptors. A pipe is the host-side software abstraction used to communicate with that endpoint after configuration. This distinction helps developers separate device firmware design from operating system driver behavior.
Why does every USB device need endpoint zero?
Endpoint zero is the default control endpoint. The host uses it during enumeration to request descriptors, assign an address, select a configuration and issue standard control requests. Without endpoint zero, the host cannot reliably discover and configure the device.
Does USB4 replace USB 2.0 and USB 3.2?
Not in a simple way. USB4 builds on earlier USB architectures and is usually discussed in the context of USB Type-C. Many devices and systems still rely on USB 2.0 or USB 3.2 behavior, and compatibility often depends on the actual controller, cable and device capability rather than the newest name alone.
What should a product page say about a USB port?
A clear product page should specify connector type, data speed, power role, charging limits, cable requirements, supported modes and operating system expectations. Saying only USB-C or high-speed USB is usually not enough for informed buyers or integrators.
The architecture mindset
The most reliable way to approach USB architecture is to think in layers. The connector determines how the product is physically attached. The signaling layer determines possible bandwidth. The device framework determines how the host discovers functions. Endpoints and pipes determine how data moves. Power Delivery determines whether a Type-C system can safely negotiate higher power. Drivers and classes determine how the operating system exposes the device to applications.
For device architecture, that layered view prevents overpromising and simplifies debugging. If a device fails, the cause may sit in descriptor design, cable selection, hub behavior, power negotiation, driver binding or signal integrity. Treating USB as a complete architecture rather than a single port type makes products easier to specify, easier to test and easier for users to understand.
