Electronics design for connected hardware from concept to compliant product

Why electronics design now starts before the schematic

Electronics design for connected hardware means turning a product idea into a reliable, manufacturable and compliant electronic system. It spans circuit architecture, component selection, PCB design, firmware interfaces, power management, thermal behavior, safety, EMC, radio performance, cybersecurity and production test strategy. The important change is timing: many design risks cannot be fixed cheaply once the board has been routed. As of September 17, 2026, standards and regulations from bodies such as IEC, IPC, the FCC, NIST and the European Union increasingly influence architecture decisions, not only final certification work. For wider context on hardware development workflows, see our product engineering section.

A practical electronics design plan should start with the product use case, target market, operating environment and expected support life. A smart sensor for industrial monitoring, a battery-powered consumer device and a tablet accessory may use similar building blocks, but they face different power budgets, enclosure limits, radio requirements, documentation needs and repair expectations. Good design work makes those trade-offs visible early enough to act on them.

Define the system architecture before choosing components

The first technical decision is not which microcontroller, radio module or power IC to buy. It is what the product must do, where it must operate and how failures will be detected. A useful architecture document defines inputs, outputs, data paths, power states, environmental limits, update mechanisms and the expected lifetime of critical parts.

Power and thermal limits

Power is both an electrical constraint and a product-experience constraint. A device that sleeps most of the time needs leakage-current analysis, wake-up timing and battery chemistry decisions. A gateway, charger or display product needs heat-spreading plans, enclosure airflow assumptions and derating rules. Thermal behavior should be modeled before the PCB is complete because board stack-up, copper area, component placement and enclosure material all affect operating temperature. Late thermal fixes often add cost, thickness or tooling changes.

Interfaces and data paths

Connected products should map every external interface: USB, Ethernet, Wi-Fi, Bluetooth, cellular, sensors, debug ports, memory cards, charging contacts and accessory pins. Each interface brings electrical, mechanical, security and compliance questions. For example, a radio interface may trigger equipment authorization requirements in the United States, while a physical debug connector may create an attack path if it remains enabled in production. The architecture should also specify what data is collected, where it is stored, how it is encrypted and how firmware updates are authenticated.

Design rules that reduce compliance risk

Compliance is often treated as a final testing step, but many failures are designed in much earlier. The design team should build a requirements matrix before layout starts and update it through each prototype stage. This matrix does not replace legal or laboratory review, but it helps prevent gaps between engineering assumptions and market obligations.

The value of this table is not the list itself. It is the discipline of linking requirements to design evidence. A board can pass early functional testing and still be difficult to certify if the antenna location, enclosure seams, fuse selection, connector ratings or software update path were never reviewed against market requirements.

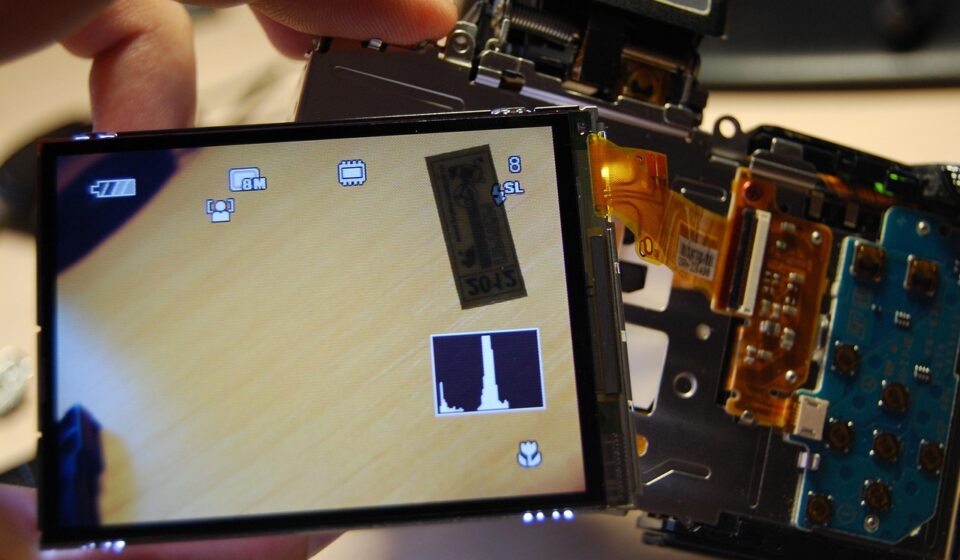

PCB and assembly decisions that affect yield

PCB layout is where electrical intent becomes manufacturing reality. Trace width, impedance control, via structures, component spacing, copper balance, panelization and test access all affect cost and yield. The design should reflect the chosen production process rather than an idealized board that only works in a prototype lab.

For many products, the most important layout choices are ordinary but consequential. Keep high-current paths short and wide. Separate noisy switching nodes from sensitive analog and RF sections. Provide a clear return path for fast signals. Avoid placing heat-generating parts where they will warm precision sensors or batteries. Reserve enough area for antenna clearance and matching networks. Place programming and test pads where a fixture can reach them without damaging the enclosure or requiring manual cable steps.

Assembly feedback should arrive before the first pilot run. A design for manufacturability review can identify tombstoning risk, awkward connector orientation, poor solder-mask definition, overly dense parts, excessive board warpage risk or components that require special handling. IPC materials note that current IPC-A-610J and IPC J-STD-001J revisions address acceptability and soldered assembly requirements, while IPC design standards cover topics such as generic printed board design, controlled impedance, current-carrying capacity, HDI boards and surface-mount land patterns. The exact standards and acceptance class should be agreed with the manufacturer and customer requirements, not assumed.

Cybersecurity and lifecycle planning belong in hardware design

Security is not only a firmware issue. Hardware decisions determine whether a product can protect keys, recover safely from failed updates, restrict debug access, isolate trust boundaries and support patches after shipment. NIST SP 800-213, published in November 2021 for U.S. federal IoT use, frames device cybersecurity requirements around the capabilities expected from the device and its manufacturer or third parties. Even outside federal procurement, that mindset is useful: define the security capability before the part is locked.

A connected product should normally define secure boot, firmware signing, rollback protection, unique device identity, credential storage, vulnerability intake, update duration and end-of-support communication. Some low-cost products may not support every advanced feature, but the trade-off should be documented. If the product will be sold in the EU after the Cyber Resilience Act becomes fully applicable, cybersecurity risk assessment, technical documentation, conformity assessment and user information will become much more central to market access for in-scope products.

Lifecycle planning also includes components. Recent semiconductor supply-chain analysis has shown that substitution can be slow when parts are tightly integrated, certified or safety-critical. Designing with second-source options, pin-compatible alternatives, configurable power rails and modular radio choices may add effort early, but it can reduce redesign pressure when a memory, sensor, connector or power-management IC becomes constrained or reaches end of life. See also: device architecture.

Prototype validation should mirror launch risk

A prototype that proves the concept is not the same as a prototype that reduces launch risk. Early prototypes often focus on core function, while later builds should test the product as it will be manufactured, programmed, enclosed, labeled, shipped, updated and serviced. The validation plan should become more formal at each stage.

• Engineering validation: confirm core electrical behavior, power states, thermal margins, sensor accuracy, radio performance and major firmware functions.
• Design validation: test the product in the intended enclosure with representative batteries, antennas, cables, chargers and accessories.
• Compliance pre-check: run EMC pre-scans, safety design reviews, RF conducted tests where relevant and cybersecurity design reviews before final certification.
• Production validation: verify programming time, fixture contact reliability, calibration flow, labeling, packaging, traceability and pass-fail limits.
• Field-readiness review: confirm update recovery, support documentation, service process, vulnerability response and end-of-life assumptions.

The most useful information increment is a risk-to-test map. Instead of listing tests generically, link each test to a known risk: overheating near the battery, poor antenna efficiency, conducted emissions from a switching regulator, moisture ingress at a connector, insecure debug access or shortage exposure for a single-source component. This makes validation easier to prioritize when schedule pressure appears.

What a complete electronics design package should include

A release-ready design package is more than schematic and Gerber files. It should allow another competent team to understand what was built, why choices were made and how the product should be manufactured and tested. At minimum, a connected hardware package should include the schematic, PCB layout, bill of materials, approved vendor list, fabrication notes, assembly drawings, test points, firmware programming process, calibration procedure, enclosure interface drawing, compliance matrix and change history.

The bill of materials deserves special attention. Each critical component should have lifecycle status, package information, voltage and temperature margin, approved alternatives where available and notes on regulatory or security relevance. For example, a wireless module affects certification strategy, a battery protection IC affects safety behavior, and a secure element affects identity and key storage. Treating all parts as equal line items hides real product risk.

Documentation also protects future design changes. If a manufacturer substitutes a passive component, adjusts solder paste, changes antenna cable length or revises firmware, the team needs to know which requirements must be retested. This is especially important for products with long support periods, regulated markets or connected features that evolve after launch.

Frequently asked questions

What is included in electronics design?

Electronics design includes system architecture, circuit design, component selection, PCB layout, power and thermal planning, signal integrity, firmware interfaces, EMC and safety considerations, manufacturability, test strategy and documentation. For connected hardware, it also includes cybersecurity and lifecycle planning.

When should compliance planning start?

Compliance planning should start before schematic capture. Target markets, radio functions, power source, enclosure, user environment and data connectivity can all affect which standards, tests and documentation are needed. Waiting until the final prototype can make fixes more expensive.

How does PCB design affect manufacturing cost?

PCB design affects cost through layer count, board size, controlled impedance needs, via type, component density, assembly side count, test access, panel utilization and yield. A smaller board is not always cheaper if it increases assembly complexity or reduces inspection and test reliability.

Why is cybersecurity part of electronics design?

Cybersecurity depends on hardware choices such as secure storage, debug access, boot architecture, update recovery and interface exposure. Firmware can improve security, but it cannot fully compensate for a hardware architecture that lacks the necessary trust and recovery mechanisms.

What is the biggest mistake in connected hardware design?

The biggest mistake is treating design as a sequence of isolated tasks. Schematic, PCB, firmware, enclosure, compliance, manufacturing and support decisions interact. The best outcomes come from reviewing these dependencies early and keeping evidence for each major requirement.
